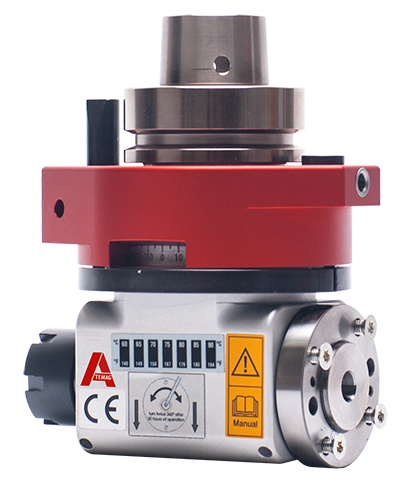

DUO SMART LINE
CNC aggregate with two horizontal tool spindles – Also ideal for compact machines
Technical Data
| Machining options |  Drilling |
 Sawing |
 Milling |
|
| Max. input speed: | 8.000 rpm | |||
| Max. output speed: | 12.000 rpm | |||
| Gear ratio: | 1 : 1,48 | |||
| Max. torque: | 15 Nm | |||
| Permissible operating temperature: | max. 85°C | |||
| Positioning of torque arm with respect to tool: | 360° | |||
| Machining angle: | 90° | |||
| Number of tool outputs: | 2 / fix | |||
| Lubrication: | Grease / Rota Lube – Lifetime lubrication | |||
Product Information
Machining capabilities: Drilling, routing, grinding, and light-duty sawing
Typical applications: Furniture making, exhibition stand construction, interior build-out
- Clamex grooves in boards (90°)
- Dowel hole drilling in edges
- Routing in edges or recesses
- Grinding of edges
- ...
Tool connections
- ER 25
- S1 saw blade flange
- Other connections on request
Machine connection:
ATEMAG aggregates are used on all CNC machines and robot systems. The machine connection is precisely matched to the technical requirements of the CNC machine or robot.
Your request for the DUO SMART LINE
NEW:
Universal Assembly and Adjustment Device (HSK 63)
The universal assembly and adjustment device (HSK 63) enables the safe clamping of all types of aggregates outside the machine – regardless of their design or machine interface.
In addition to maintenance work on the aggregate, shank tools or complete tool sets can be reliably assembled and adjusted – whether inside the aggregate, in tool holders, or on milling arbors – quickly, precisely, and safely.
Thanks to its compatibility with all common machine connections, the device offers flexible application possibilities, regardless of the position and number of locking or support pins on the aggregate. Even tool holders with nesting turbines fit effortlessly.
Whether angle adjustments on swivel aggregates, setting tool positions on sensing aggregates, or tool changes on multi-spindle drilling heads – our assembly and adjustment device is THE essential tool for every workshop equipped with CNC machinery.
Key Features:
- Easy handling of aggregates with various designs
- Suitable for all common machine interfaces
- Secure clamping and precise alignment of tools
- Universally applicable for assembly, maintenance, and production
- Robust design for long-term, continuous use
